The Power of Reliability: How the Twin Disc 7600 Transmission is Powering Frac Rigs

This article was originally published by Twin Disc as a case study. Palmer Johnson Power Systems is an authorized Twin Disc distributor and service center.

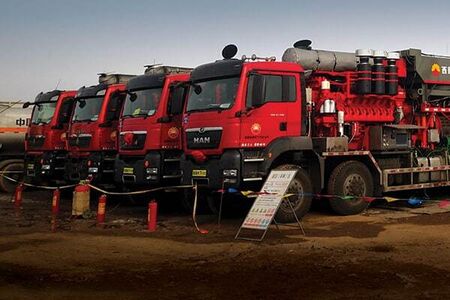

7600 Case Study Image

A top oil and gas producer sought increased reliability for its fracturing rigs, and found the answer in Twin Disc’s specialized transmission systems.

Implication/Problem:

China’s CNPC West Drilling, one of the region’s top oil and gas businesses, needed a more reliable fracturing rig. They found the dependability and durability with Twin Disc.

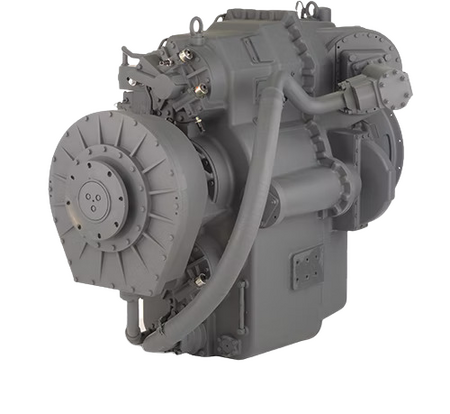

Twin Disc 7600 Transmission TA90 7601

Solution:

Twin Disc’s TA90-7600 transmission systems are designed specifically for pressure-pumping rigs for oil and gas well stimulation. The unique Twin Disc system eliminates the torque converter, uniting a deceptively simple countershaft design with heavy-duty clutch assemblies for durability— delivering performance that matches pressure-pumping rig engine life. The TA90-7600 still allows full range to-range power shifts with no throttle dipping. And the compact size lets it fit between the frame rails of mobile equipment. Additional advantages include gear ratios that create a better flow rate, maintaining pressure and thereby increasing production. Closely spaced gear ratios maintain more consistent pump flow rate, optimizing engine performance.

Results:

CNPC came to prefer the simple, robust design when initial use showed the system delivers long hours of high performance in challenging conditions. “This model has been in field fracturing operation for more than 500 hours,” says CNPC’s Yan Zhiyong, leader of the field fracturing team. “It shows consistently good, smooth performance.” Smooth shifting minimizes shock to the whole drive train, extending time between overhauls—and living up to CNPC’s expectations that the firm can count on Twin Disc.

For more information on the Twin Disc 7600 transmission or to begin the exploration of utilizing a Twin Disc 76000 for your next application, contact our experts today!

Twin Dic 7600 Case Study Thumbnail

Twin Disc 7600 Frac Application Case Study
