Durst Lectric Drive Pump Drive

Palmer Johnson is North America’s leading authorized Durst distributor. We are the product experts for the Durst Lectric series of pump drives with the product knowledge and vast inventory to help you with your electric pump drive project.

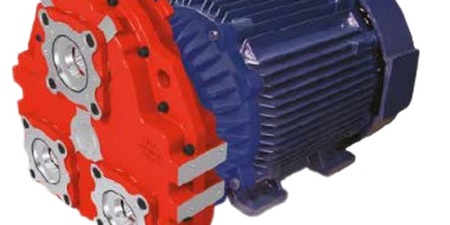

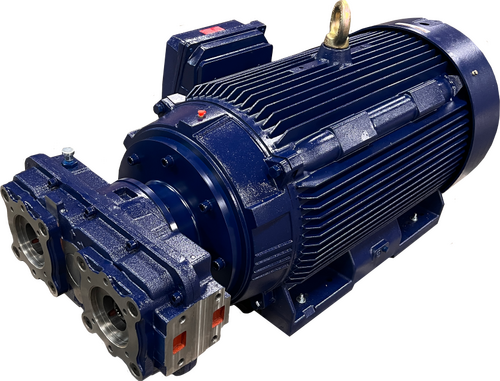

The Lectric Drive is a Regal Rexnord solution combining a Durst® pump drive and a Marathon® electric motor, to bring you an economical, space saving alternative for mounting pump drives directly to electric motors. The Lectric Drive is a game changer that makes the conventional C-Face Motor Adapter and external coupling approach obsolete.

The Lectric Drives couple to Durst's industry leading pump drives ranging from a 1 pad 1PD06 up to a 4 pad 4PD11 with everything in between.

Durst's Lectric Drives mount to the pump drive using a C-Face flange adapter creating a fully electric hydraulic pump drive system. One huge benefit with this style of mounting is that it eliminates the old mounting style which required a coupling and coupling guard. In turn, you have up to 20" of length saved in the package creating a caompact electric pump drive solution.

Contact our pump drive experts today to learn more about this electric pump drive solution. We will work with you throughout each step of the application process to ensure the end result is an electric pump drive package that is the perfect fit for your project!



APPLICATION SPECIFICATIONS

  • Supports up to 1025 HP Electric Motors
  • Frame Sizes: 404 through 5000
    • C-Face mounting w/motor foot mounting
  • Compatible with most Durst® Pump Drives including the following models: 1PD06, 1PD09, 2PD06, 2PD08, 2PD10, 3PD06, 3PD08, 3PD10, 4PD08, 4PD09, 4PD11

MOTOR SPECIFICATIONS

  • TEFC and Explosion Proof
  • Cast Iron Construction
  • Corrosion-Resistant Hardware
  • Epoxy Paint
  • 230, 460, 575 Volt 50/60Hz
  • 100 – 1,000 Horsepower

PUMP DRIVE SPECIFICATIONS

  • Compatible with most Durst® Pump Drives including the following models: 1PD06, 1PD09, 2PD06, 2PD08, 2PD10, 3PD06, 3PD08, 3PD10, 4PD08, 4PD09, 4PD11
  • Modular Design
  • Wide Selection of Gear Ratios
  • Torque Rating: 1,040 – 2,150 ft-lbs

PUMP DRIVE OPTIONS

  • Pump Pads - SAE A, B, C, D, E, F
  • Pump Splines - SAE A, B, BB, C, CC, D, E, F, 21T, 23T, 27T
  • Companion Flanges: 1410, 1550, 1610, 1810, 29T
  • PTO Shafts: 1-3/8 6T, 1-3/4 20T-12/24
  • Keyed Shafts: 2.25" & 2.5" diameter
Durst Lectric Drive Electric Pump Drive 1
