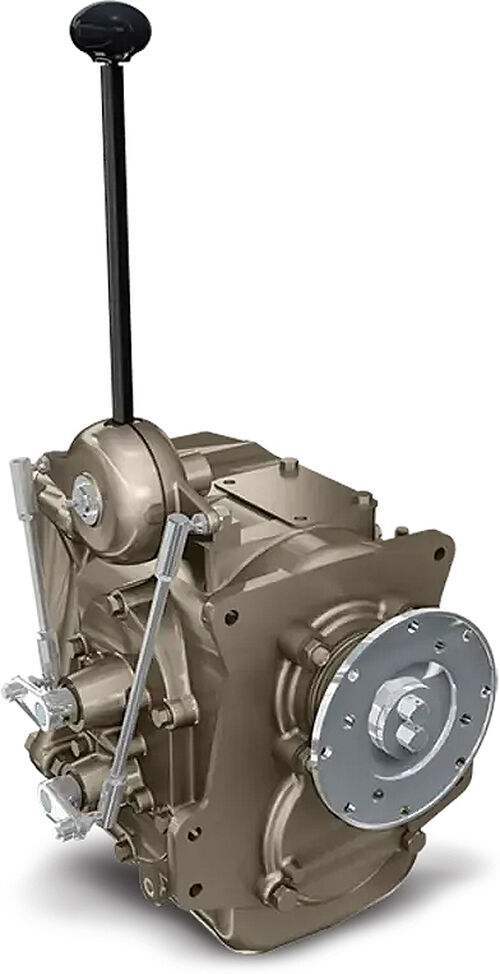

Transmission HMD12700

Palmer Johnson is an authorized Funk service center and distributor. We maintain an extensive inventory of Funk 12700 HMD transmission parts and complete transmissions along with factory trained technicians that can get you back up and running in no time. Contact the experts today to learn more about how we can help you with your Funk HMD transmission needs.


Input power (max): 104 kW (140 hp)

Input torque (max): 407 Nm (300 lb-ft)

Input no load speed (max): 2500 rpm

General Data

Motor adapters: SAE C and D

Approximate dry weight: 88 kg (194 lb)

Oil capacity: 4.4 L (4 qt)

Oil type: MIL-L-2105-C or API classification GL-5

Speeds: 4

Configuration: In-line

Shift Options: Mechanical

Applications: Dozing machines, motor graders, railway vehicles, sweepers, pavers, and virtually any equipment requiring controlled travel speed

Contact Us

Please be as specific as possible by including how we can assist along with any relevant information such as spec number, BOM number, or serial number.

Assembly & Model Numbers:

12700, HMD12700, HMD12700B, HMD12700A, HMD12700AA, HMD12700AH, HMD12700BJ, HMD12700XX, HMD12700DH, HMD12700BH, 12700, 12700B, 12700A, 12700AA, 12700AH, 12700BJ, 12700XX, 12700DH, 12700BH, 13048, YZ13048, YZ17270, 11417, YZ11471, 13022, YZ13022, YZ13759, YZ14059, YZ15116, YZ16040, YZ16076, YZ17269, YZ14496, YZ17270, YZ15011, YZ15012, YZ15150, YZ15734, YZ15777, YZ15937, YZ16040, YZ16190, YZ16261, YZ16391, YZ16705, YZ17125, YZ17271, YZ19069 YZ16343, 10488, YZ10488, 12091, YZ12091, YZ15116, YZ16392, YZ16705, 2238, 2108, 3241, 4546, 8710, 2393, 5075, 6318, 6815, 6879, 02238, 02108, 03241, 04546, 08710, 02393, 05075, 06318, 06815, 06879, YZ2238, YZ2108, YZ3241, YZ4546, YZ8710, YZ2393, YZ5075, YZ6318, YZ6815, YZ6879, YZ02238, YZ02108, YZ03241, YZ04546, YZ08710, YZ02393, YZ05075, YZ06318, YZ06815, YZ06879
