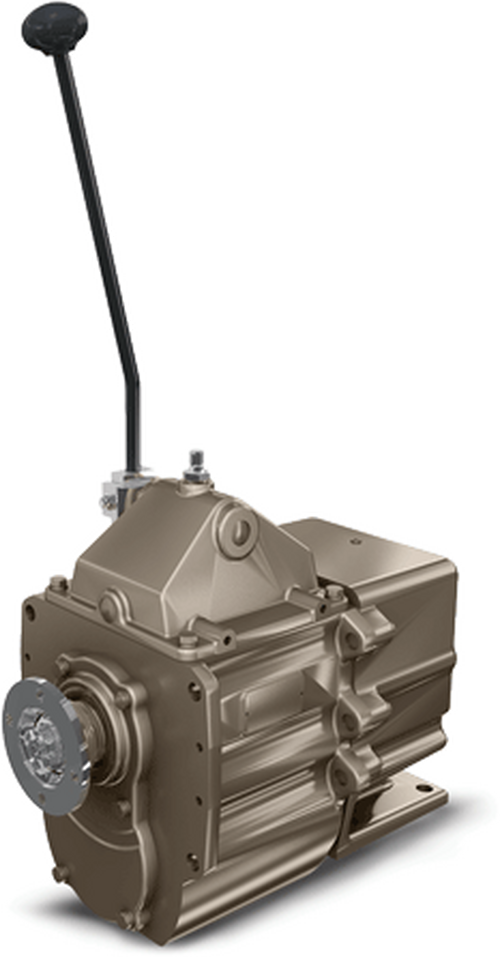

Palmer Johnson is an authorized Funk service center and distributor. We maintain an extensive inventory of Funk 23000 HMD transmission parts and complete transmissions along with factory trained technicians that can get you back up and running in no time. Contact the experts today to learn more about how we can help you with your Funk HMD transmission needs.
Ratings
Input power (max): 75 kW (100 hp)
Input torque (max): 271 Nm (200 lb-ft)
Input no load speed (max): 3000 rpm
General Data
Motor adapters: SAE C and D
Approximate dry weight: 69-72 kg (151-159 lb)
Oil capacity: 3.3 L (3 qt)
Oil type: MIL-L-2105-C or API classification GL-5
Speeds: 3, 4
Configuration: In-line
Shift Options: Mechanical
Applications: Dozing machines, motor graders, railway vehicles, sweepers, pavers, and virtually any equipment requiring controlled travel speed
- Authorized Distributor
- Genuine Parts
- Service and Support
Assembly & Model Numbers:
HMD23000, HMD2325, HMD2355, HMD2327, HMD2326, HMD2357, HMD2315, HMD23125, HMD23155, HMD23127, HMD23126, HMD23157, HMD23115, HMD2325XX, HMD2355XX, HMD2327XX, HMD2326XX, HMD2357XX, HMD2315XX, HMD2325C0, HMD2325D0, HMD2325CB, HMD2325DB, HMD2355D0, HMD2355C0, HMD2355CB, HMD2355DB, HMD2327D0, HMD2327CO, HMD2326C0, HMD2326D0, HMD2357C0, HMD2357D0, HMD2315CC, 23000, 2325, 2355, 2327, 2326, 2357, 2315, 23125, 23155, 23127, 23126, 23157, 23115, 2325C0, 2325D0, 2325CB, 2325DB, 2355D0, 2355C0, 2355CB, 2355DB, 2327D0, 2327CO, 2326C0, 2326D0, 2357C0, 2357D0, 2315CC, 7601, YZ07601, YZ7601, 07601, 8752, 08752, YZ8752, YZ08752, YZ15343, YZ15399, YZ18165, YZ19112, YZ18351, YZ19476, YZ15945, YZ15978, YZ14324, YZ14401, YZ15384, YZ15568, YZ16995, 07234, 7234, YZ07234, YZ7234, 10835, YZ14270, 10772, 11606, 13290, 12004, 10988, 10773, 20311, 5915, 05915, YZ5915, YZ05915,4923, 04923, YZ4923, YZ04923, 4710, 04710, YZ4710, YZ04710, 4924, 04924, YZ4924, YZ04924, 4947, 04947, YZ4947, YZ04947, 5025, 05025, YZ5025, YZ05025, 5059, 0509, YZ5059, YZ05059, 5220, 05220, YZ5220, YZ05220, YZ15308, YZ15949, YZ14099, 10803, 11554, 10983, 10802, 4791, 9199, 7419, 5135, 6424, 4923, 4547, YZ4791, YZ9199, YZ7419, YZ5135, YZ6424, YZ4923, YZ4547, 04791, 09199, 07419, 05135, 06424, 04923, 04547, YZ04791, YZ09199, YZ07419, YZ05135, YZ06424, YZ04923, YZ04547, 12353, YZ12353, 5068, 05068, YZ5068, YZ05068, 8564, 08564, YZ8564, YZ08564, 4926, 04926, YZ4926, YZ04926, 6308, 06308, YZ6308, YZ06308, 9060, 09060, YZ960, YZ0960, YZ14919, YZ19257, YZ19595, 11606, YZ11606, 4950, 9429, 8433, 7331, YZ4950, YZ9429, YZ8433, YZ7331, 04950, 09429, 08433, 07331, YZ04950, YZ09429, YZ08433, YZ07331, YZ14281, 5014, 05014, YZ5014, YZ05014, 4785, 04785, YZ4785, YZ04785, 9994, 09994, YZ9994, YZ09994, 7799, 07799, YZ7799, YZ07799, 7747, 07747, YZ7747, YZ07747, 5489, 05489, YZ5489, YZ05489, 4875, 04875, YZ4875, YZ04875, 4995, 04995, YZ4995, YZ04995
GEAR RATIOS
(spur type gears)
Model | Low | 2nd | 3rd | High |
23155 | 6.63:1 | 3.17:1 | 1.72:1 | 1:1 |
23125 | 6.63:1 | 2.54:1 | - | 1:1 |
23115 | 3.74:1 | 1.90:1 | - | 1:1 |
23126 | 6.63:1 | 3.17:1 | - | 1:1 |
