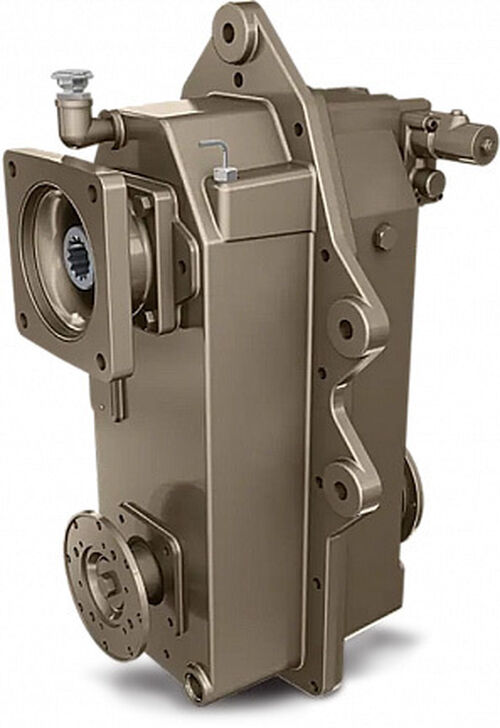

Transmission HS17000 HMD

Palmer Johnson is an authorized Funk service center and distributor. We maintain an extensive inventory of Funk HS17000 HMD transmission parts and complete transmissions along with factory trained technicians that can get you back up and running in no time. Contact the experts today to learn more about how we can help you with your Funk HMD transmission needs.

Ratings

Input power (max): 93 kW (125 hp)

Input torque (max): 1017 Nm (750 lb-ft)

Input no load speed (max): 4300 rpm

General Data

Motor adapters: SAE D

Approximate dry weight: 192 kg (424 lb)

Oil capacity: 7.6 L (8 qt)

Oil type: Hy-Gard™ or J20C

Speeds: 2

Configuration: Drop - 381 mm (15 in)

Shift Options: Powershift, Mechanical

Applications: Dozing machines, motor graders, railway vehicles, sweepers, pavers, and virtually any equipment requiring controlled travel speed

Contact Us

Assembly & Model Numbers:

17000, HS17000, HS1711, HS1711A, HS1713, HS1713A, HS1721, HS1721A, HS1741, HS1741A, 11600, YZ11600, YZ12351, YZ13849, YZ14311, YZ15050, YZ15514, YZ16531, YZ17609, YZ18368, YZ19009, 13562, YZ13562, 11635, YZ11635, 11338, YZ11338, YZ14073, YZ19847, YZ19390, YZ15056, YZ14842, YZ14817, YZ14763, YZ13929, 12351, YZ19754, YZ20134
