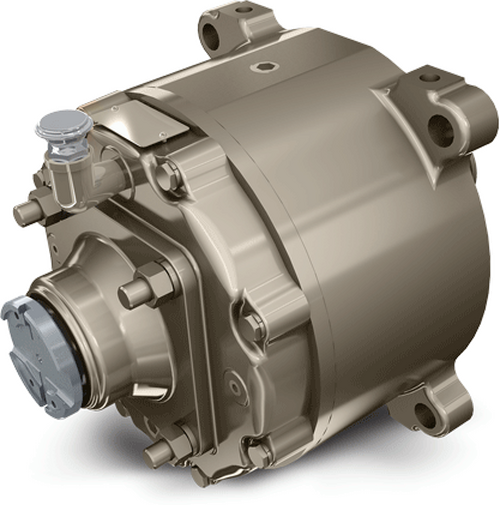

Funk planetary f9

Palmer Johnson is an authorized Funk service center and distributor. We maintain an extensive inventory of Funk F9 planetary gear drive parts along with factory trained technicians that can get you back up and running in no time. Contact the experts today to learn more about how we can help you with your Funk F9 planetary gear drive needs.


Input power (max): 27 kW (36 hp)

Input speed (max): 2800 rpm

Output torque (intermittent): 12,880 Nm (9500 lb-ft)

Output torque (continuous): 8,135 Nm (6,000 lb-ft)

General data

Approximate dry weight: 100 -181 kg (220 - 400 lb)

Radial load (max): 14,287kg (31,500 lb)

Drive type: Speed reducer

Hydraulic motor input: SAE C or D hydraulic

Gear ratios

Ratio range: 3.27-117:1

Contact Us

Please be as specific as possible by including how we can assist along with any relevant information such as spec number, BOM number, or serial number.

Assembly & Model Numbers:

F9, F9R, F9N, F9L, F9RT, F9NR, F9NT, F9RR, F9LT, F9NS, F9RS, F9NN, F9LR, 13109, 4605, YZ13258, YZ16971, 9458, YZ17088, YZ16973, YZ15938, YZ15370, YZ05077, 8565, 5328, 4626, 4221, 13280, 12696, 11675, 11144, 10697, 10797, 11672, 3125, 3386, 3686, 5077, 5299, 5688, 6417, 9734, 9736, YZ04626, YZ14042, YZ16969, YZ16970, YZ17077, YZ17962, 13109, 4605, 13258, 9458, 8565, 5328, 13151, YZ15435, YZ16968, YZ16972, YZ17706, YZ16148, YZ16578, YZ18856, 5758, YZ14097, YZ15024, YZ15634, YZ16982, YZ15243, 13592, 5630, YZ14336, YZ18340, YZ18341, YZ15503, YZ17587, YZ17733, YZ17734, YZ15749, YZ18040, 2510, 3603, YZ14624, YZ14641, YZ14808, YZ15121, YZ16213, YZ18225, YZ18855, YZ15696, 11682, 6191, YZ14840, YZ15876, YZ16407, YZ17513, YZ18192, 5556, 8754, YZ11683, YZ14988, YZ15346, 12953, 5499, 5595, YZ15400, 9114, YZ15066, YZ18426, YZ18427, YZ15063, YZ15065, 8568, YZ15748, YZ16577, YZ15497, YZ13922, YZ15064, 13568, YZ14871, YZ14148, YZ15496, YZ15502, 6158, YZ15241, 4626, 4221, 13280, 12696, 11675, 11144, YZ16971, YZ13258, YZ17088, YZ16973, YZ15938, YZ15370, YZ05077, 5423, YZ06248
