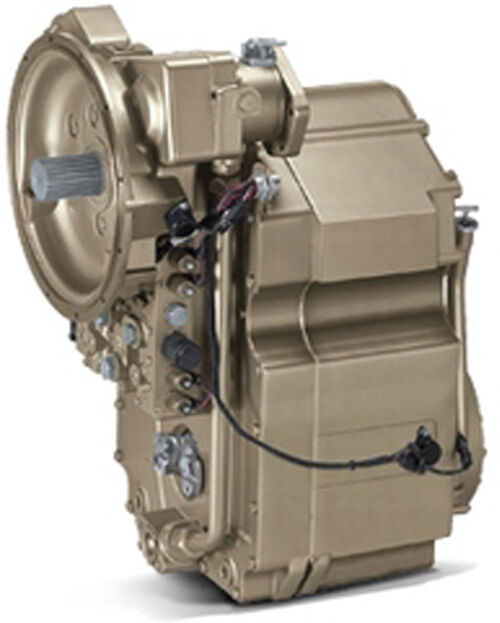

Funk powershift

Palmer Johnson is an authorized Funk service center and distributor. We maintain an extensive inventory of Funk 4000 series powershift transmission parts along with factory trained technicians that can get you back up and running in no time.

The Funk 4000 series powershift transmission is no longer being manufactured, but we are still able to locate parts and provide service. Contact the experts today to learn more about how we can help you with your Funk 4000 series powershift transmission needs.

Ratings

Input power (max): 75 kW (100 hp)

Input speed (max): 2800 rpm

Input torque (max): 255 Nm (188 lb-ft)


General Data

Input: Counterclockwise

Output: Counterclockwise

Mounting: Engine, midship, or remote

Oil: Hydraulic transmission fluid type C-3 (MIL-L-2104 Grade 10) latest revision. Funk spin-on filter remote mounted

Approximate dry weight:

4.00" Drop - 440 lbs. (200 kg)

14.50" Drop - 625 lbs (283 kg)

18.63" Drop - 650 lbs (295 kg)



Contact Us

Assembly & Model Numbers:

4013E4PFA, 4023M3PFA, 4023E4PFA, 4013E3PEA, 4023EFPA, 4012E4PFA, 4013E4P, 4013E3PFA, 4013E3PBA, 4023E3PEA, 4033E3PEA, 4000, 4013, 4023, 4033, 11572, 12737, 9238, 9815, YZ15924, YZ16326, 12767, YZ16818, YZ16362, YZ15035, YZ14880, YZ14768, YZ14698, 9286, 8808, 8056, 7977, 7417, 6862, 6497, 12176, 11212, 10753, 10458, 10306, 10185, YZ16175, 9987, 7297, 12941, 12218, 11723, 10530, 10291
