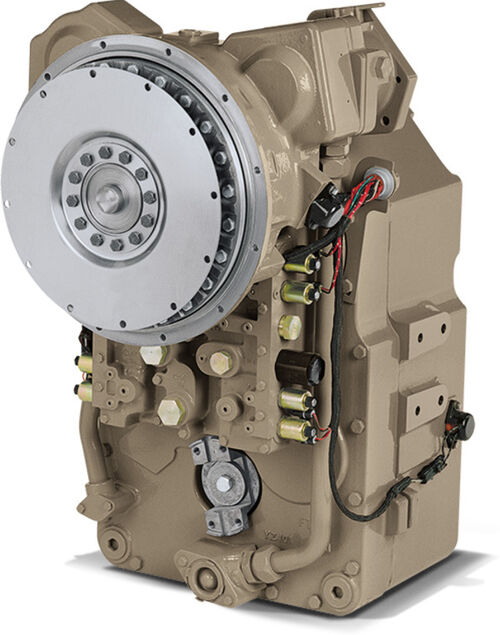

Funk DF150 Transmission

Palmer Johnson is an authorized Funk service center and distributor. We maintain an extensive inventory of Funk DF150 powershift transmission parts along with factory trained technicians that can get you back up and running in no time. Contact the experts today to learn more about how we can help you with your Funk DF150 powershift transmission needs.

Ratings

Net input power (max): 112 kW (150 hp)

Input no load speed (max): 3000 rpm

Converter stall torque (max): 1288 Nm (950 lb-ft)

Engine net peak torque (max): 759 Nm (560 lb-ft) direct drive

General Data

Rotation: -

Input: Counterclockwise

Output:

Forward, same as input
Reverse, opposite input
500 mm (19.68 in) drop

Approximate dry weight: 567 kg (1250 lb)

Mounting: Engine, midship, or remote

Speeds: 4F/4R, 8F/4R

Contact Us

Please be as specific as possible by including how we can assist along with any relevant information such as spec number, BOM number, or serial number.

Assembly & Model Numbers:

DF150, DF15044, DF15084, DF1544, DF1584, DF1544E50DA, DF15044R000A, DF1544R00WA, DF15044R20WA, DF15084E2DWA, DF15044R0DWA, DF1584E2DOA, DF1584M400A, DF1544E10DA, DF1544E100A, DF1544R20WA, DF1584E2DWA, DF1584E00DA, DF15044R00WA, DF1544E2DWA, DF1544E200A, DF15044EZDWA, DF15044M300A, DF15044E2DWA, DF1544R0DWA, DF15084E20WA, DF15044E20DA, DF15084E40WA, DFYZ15925, YZ16220, YZ20070, YZ20102, YZ20402, YZ16250, YZ19715, YZ19793, YZ20539, YZ19339, YZ19976, YZ20021, YZ19150, YZ20028, YZ20036, YZ14892, YZ14964, YZ15736, YZ15877, YZ15926, YZ16231, YZ16232, YZ16233, YZ16254, YZ16256, YZ16269, YZ16673, YZ16820, YZ16939, YZ17233, YZ17260, YZ17601, YZ18354, YZ18487, YZ18642, YZ18684, YZ18717, YZ19156, YZ19167, YZ19189, YZ19484, YZ19525, YZ19543, YZ19797, YZ19974, YZ20073, YZ20132
