Next-Gen Efficiency. Built-In Durability. Seamless Performance.

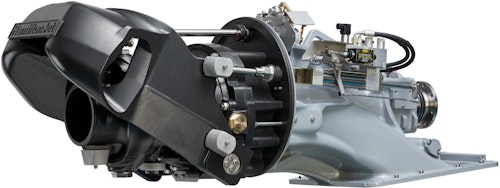

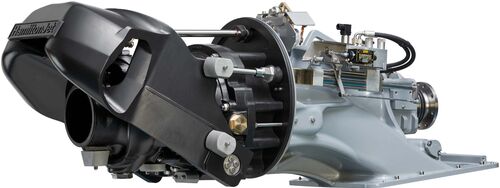

The HTX30 is a flagship in HamiltonJet’s next-generation waterjet series—engineered to deliver top-tier propulsion performance with a compact, rugged, and highly efficient design. Powered for speeds up to 55 knots, the HTX30 redefines small-to-midrange waterjet capability through cutting-edge hydrodynamics, fully integrated hydraulics, and materials chosen for endurance in extreme marine conditions.
Every element of the HTX30 has been designed to optimize control, simplify installation, and maximize power—making it an ideal solution for modern vessels that demand more.
- Authorized Distributor
- Genuine Parts
- Service and Support
Core Performance Benefits
- Max Power: 570 kW
- Top Speed: Up to 55 knots
- High-Speed Efficiency: 7% gain over previous models
- Peak Bollard Pull: 19% increase
- Corrosion Resistance: 10x improvement with marine-grade alloys and anode systems
- Footprint: Compact inboard design with fully integrated hydraulic systems
Advanced Features at a Glance
- New Low-Wear Steering System: Built for efficiency and responsiveness
- Mixed Flow Tapered Housing: Reduces drag and boosts thrust
- Materials That Endure:
- Transition duct, intake, stator, nozzle, and steering components all made from marine-grade aluminum (EN AC 44100)
- Impeller and mainshaft constructed with CF8M and duplex stainless steel, respectively
- Internal and external high-energy aluminum anodes for extended service life
- Streamlined Installation: Through-transom fit and minimal onboard footprint for simpler integration
