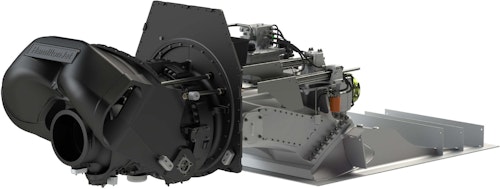

Hamilton Jet htx65

Engineered for the World’s Most Demanding Vessels

The HTX65 stands as the largest and most capable model in the HTX Series—delivering elite propulsion for large-scale vessels operating in the most demanding marine environments. Built with next-gen hydrodynamics, advanced mixed-flow technology, and fully integrated AVX digital controls, the HTX65 redefines expectations for performance, reliability, and installation ease in the high-power waterjet category.

From naval and defense platforms to heavy-duty commercial workboats, the HTX65 is the definitive choice when there’s no room for compromise.

Contact Us

Powerhouse Performance

  • Max Power: 3100 kW / 4157 hp
  • Max RPM: 1258
  • Top Speed: 50+ knots
  • Jet Type: Mixed Flow
  • Dry Weight: 2617 kg / 5769 lbs
  • Wet Weight: 3426 kg / 7553 lbs
  • Transition Duct Weight: 200 kg / 441 lbs
  • Shaft Angle: 0°
  • Class Approvals: DNV-GL, ABS (others available on request)

Built for Performance, Designed to Endure

  • 3.5% Efficiency Gain: New hydrodynamic design boosts high-speed performance
  • 15% Increase in Bollard Pull: More thrust for heavy vessels
  • 6-Knot Minimum Speed Improvement: Precision at slow speeds
  • Corrosion-Resistant Construction:
    • Marine-grade aluminum (EN AC 44100) for key housings
    • Duplex & Super Duplex stainless steel components for extreme strength
    • Replaceable 2205 Duplex wear rings and CF8M stainless impeller
    • High-energy aluminum anodes internal and external for maximum longevity
  • AVX Digital Control Integration: Seamless, intuitive system management onboard
