Tractor PTO Pump Drive Adapter: Our New Adapter Saves the Day (and Money!)

One frequent demand we encounter during gearbox and hydraulic pump drive projects is the desire of customers to link their gearbox/pump drive to a tractor PTO shaft. Unfortunately, many pump drive and gearbox manufacturers do not provide this feature, or if they do, it comes with exorbitant costs and lengthy wait times.

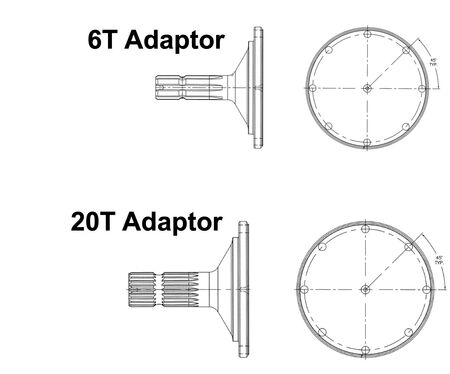

We’ve taken this feedback and developed an adapter that will connect with a 1600 series Spicer flange and provide the option of a tractor PTO shaft. We have these adapters in the following options:

• 6T
• 20T
• 21T

Utilizing this adapter, we are able to offer a tractor PTO input or output shaft compatible with major pump drive brands such as Funk, Durst, Twin Disc, and others. When starting a pump drive or gearbox project, make Palmer Johnson your first stop. We have an experienced & solution-oriented staff that thinks outside of the box to get the job done!

These tractor PTO pump drive adapters can be used with major pump drive brands such as Funk, Durst, Twin Disc, and others. Below is a list of common model numbers that these tractor PTO adapters can be used with:

Funk Pump Drive Models:

• 28000 Single: 28101, 28103, 28275
• 28000 Double 5“ Gear Centers: 28102, 28104, 28180
• 28000 Double 6“ Gear Centers: 2826XXP, 2826XR, 2826XXC
• 28000 Triple: 28211, 28212, 28213
• 59000 Double: 5928XXP, 5928XR, 5928XXC
• 59000 Triple: 593WXXP, 593WXR, 593WXXC
• 59000 Four: 594PXXP, 594PXR, 594PXXC

Durst Pump Drive Models:

• 1 Pad Pump Drives: 1PD06, 1PD09
• 2 Pad Pump Drives: 2PD05, 2PD06, 2PD08, 2PD10
• 3 Pad Pump Drives: 3PD06, 3PD08, 3PD10
• 4 Pad Pump Drives: 4PD08, 4PD09, 4PD11

Twin Disc Pump Drive Models:

• 1 Pad Pump Drives: AM110
• 2 Pad Pump Drives: AM216, AM220, AM230, AM232, AM270
• 3 Pad Pump Drives: AM320, AM330, AM345, AM365, AM370
• 4 Pad Pump Drives: AM450, AM480
